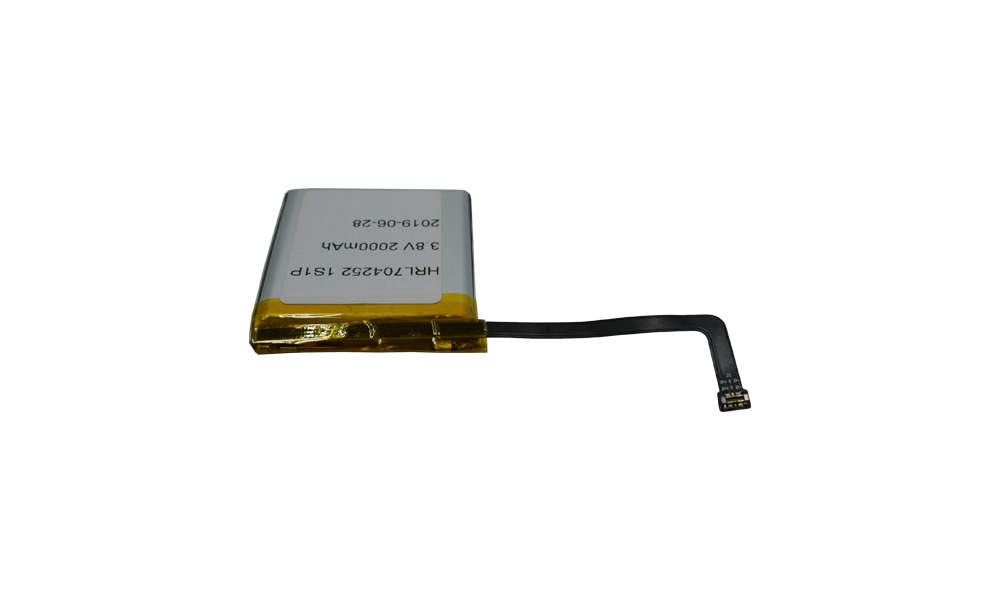

china factory704252 3.8v 2000mah lithium ion packs
What is the details of your batteries?
details
| NO | Item | Characteristics |
| 1 | Nominal Capacity | 2000Ah |
| 2 | Nominal Voltage | 3.8V |
| 3 | Initial Impedance | ≤80mΩ(23±2°C) |
| 4 | Limited Charge Voltage | 4.2V |
| 5 | Discharge Cut-off Voltage | 3.0V |
| 6 | Charge Current | Standard Charge: 0.2C |
| Discharge Current | Rapid Charge: 0.5C | |
| 7 | Standard Charge | 0.2C 5A CC(constant current) charge to 4.2V, then CV(constant voltage) charge till charge current decline to 0.02C. |
| 8 | Standard Discharge | 0.2 C5A discharge to the Discharge Cut-off Voltage. |
| 9 | End-of-Charge Current | 0.02 C5A |
| 10 | Max Continuous Charge Current | 0.5C |
| 11 | Max Continuous Discharge Current | 1C |
| 12 | Working Temperature Range | Charge : 0 ~ 45°C |
| Discharge : – 20 ~ 60°C | ||
| 13 | Storage Temperature Range | -20 ~ 60°C≤1month -20 ~ 45°C≤3months -20 ~ 30°C≤12months |
| 14 | Operating and Storage Humidity Range | 45~75% RH |
| 15 | dimension |
|
Applacations
Headphone,Face list,air purifier,microphone
Product advantages
1, Excellent security, no memory effect, stable performance,
2, High energy density, high capacity, low self-discharge
3, Long cycle life of more than 500 times
4, CE / ROHS/ UL1642 / MSDS / UN38.3 / IEC standard/UN3.83/KC
5, Capacity and size could be customerized
Lithium electronic battery charging and discharging principle structure diagram
Basic characteristics and principle of lithium battery
The high-rate lithium polymer lithium battery uses a special structural design, uses a lamination process, and special optimized ratio of the electrolyte. Unlike the polymer lithium battery of the mobile phone,
the high-rate lithium polymer lithium battery has low internal resistance and discharge. High efficiency, large current discharge, fast charging, etc.; can be 3-5C fast charging, 80% of full charge in 12 minutes (matching special fast charger)
Factory Show
Packaging & Delivery
| Pacaging Detail: | Carton packing,200pice per box, 10 boxes per Carton, Customer customized service accepted |
| Delivery Detail: | Sameple 7-15 days, Quantity order 25-30days |
Q:Are you manufactory?
A:Yes, we are professional mammnufacturer for polymer batteries since 2008
Q:What is MOQ for this product in your caompany?
A:MOQ 1000pcs.
Q:When you ship my order?
A:Normally 35-45days affter payment confirmed, but it can be negotiated based on order qty and production schedule.
Q:Can I get the pre-production sample?
A:Yes, we will send you sample for approval first, affter you confirm, then we will start mass production order.
Q:Can batterise size custome available?
A:Yes, Please send ud the capacity and max battery size, so that we can search our model for you.
Q:How about the quality grantee period?
A:One Year.
Q:Hoew can you guarantee the production quality?
A:We have moren than 10 years experience ofpolymer battery production. Our production quality follow strixt control procedd. We have 3 times inspection for finished product before package. All of our battrties are 100% tested and insoeted before shibment.
HRL specializes in the development, production and sales of custom lithium batteries.If you have any questions, pls feel free to contact us.
